UniformRays¶

class raytracing.UniformRays(yMax=1.0, yMin=None, thetaMax=1.5707963267948966, thetaMin=None, M=100, N=100)¶

Bases: raytracing.rays.Rays

A list of rays with uniform distribution.

Parameters:

yMax (float) – Maximum height for the rays (default=1.0)
yMin (float) – Minimum height for the rays (default=None). If no value is assigned to this parameter it will be -yMax.
thetaMax (float) – Maximum angle for the rays (default=pi/2)
thetaMin (float) – Minimum angle for the rays (default=None) If no value is assigned to this parameter it will be -thetaMax
M (int) – Number of points that are defined for the height of rays
N (int) – Number of rays for each point

Examples

>>> from raytracing import *
>>> nRays = 1000 # Increase for better resolution
>>> minHeight=0
>>> maxHeight=50
>>> minTheta=0
>>> maxTheta=0.5
>>> # define a list of rays with uniform distribution
>>> inputRays = UniformRays(yMin=minHeight, yMax=maxHeight, thetaMin=minTheta,thetaMax=maxTheta, N=nRays, M=10)

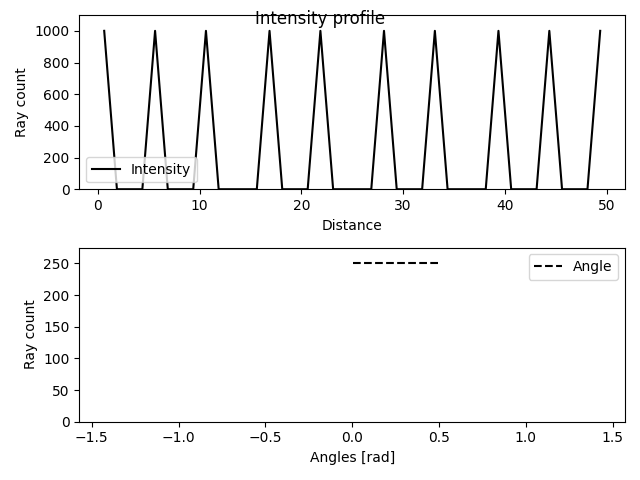

>>> inputRays.display()

append(ray)¶

A ray can be appended to the List of the rays using this function.

Parameters:	ray (object of ray class) – a ray with height y and angle theta

count¶: Returns the number of rays in the list.

display(title='Intensity profile', showTheta=True)¶

This function plots the intensity profiles of a list of rays.

Parameters:	title (string) – the title for the plot (default=”Intensity profile”) showTheta (bool) – If True, the values for the angle of rays will be shown. (default=True)

Examples

>>> from raytracing import *
>>> nRays = 10000 # Increase for better resolution
>>> minHeight=0
>>> maxHeight=50
>>> minTheta=0
>>> maxTheta=0.5
>>> nBin=20
>>> # define a list of random rays with uniform distribution
>>> inputRays = RandomUniformRays(yMin=minHeight, yMax=maxHeight, thetaMin=minTheta,thetaMax=maxTheta, maxCount=nRays)
>>> inputRays.display()

displayProgress()¶: This function prints the progress of the iterations

load(filePath, append=False)¶

A list of rays can be loaded using this function.

Parameters:	filePath (str or PathLike or file-like object) – A path, or a Python file-like object, or possibly some backend-dependent object. Must be provided in OS-dependent format. append (bool) – If True, the loaded rays will be appended to the current list of rays.

rayAnglesHistogram(binCount=None, minValue=None, maxValue=None)¶

This functions calculates the histogram for the angle of the rays.

Parameters:

binCount (int) – number of defined bins in the histogram. If it is not defined, the histogram will have 40 bins.
minValue (float) – The minimum value to be considered in the histogram. If it is not defined in the inputs, the minimum angle of rays will be assigned to this parameter.
maxValue (float) – The maximum value to be considered in the histogram. If it is not defined in the inputs, the maximum angle of rays will be assigned to this parameter.

Returns:

_xValuesAnglesHistogram (array) – An array (Bins*1) that includes the x values for bins.
_thetaHistogram (array) – An array (Bins*1) that includes the y values for bins.

Examples

The function can be used to calculate the x values and y values for the histogram of an input ray.

>>> from raytracing import *
>>> nRays = 10000 # Increase for better resolution
>>> minHeight=0
>>> maxHeight=50
>>> minTheta=0
>>> maxTheta=0.5
>>> nBin=20
>>> # define a list of random rays with uniform distribution
>>> inputRays = RandomUniformRays(yMin=minHeight, yMax=maxHeight, thetaMin=minTheta,thetaMax=maxTheta, maxCount=nRays)
>>> [xVal,yVal]=inputRays.rayAnglesHistogram(binCount=nBin)

And to plot the hitogram we can use xVal and yVal of the theta as the following:

>>> import matplotlib.pyplot as plt
>>> plt.figure()
>>> plt.bar(xVal,yVal,width=maxTheta/nBin)
>>> plt.title('Histogram of the inputRay')
>>> plt.ylabel('Counts')
>>> plt.xlabel('Angle of Rays')
>>> plt.show()

See also

raytracing.rays.rayCountHistogram()

rayCountHistogram(binCount=None, minValue=None, maxValue=None)¶

This functions calculates the histogram for the height of the rays.

Parameters:

binCount (int) – number of defined bins in the histogram. If it is not defined, the histogram will have 40 bins.
minValue (float) – The minimum value to be considered in the histogram. If it is not defined in the inputs, the minimum height of rays will be assigned to this parameter.
maxValue (float) – The maximum value to be considered in the histogram. If it is not defined in the inputs, the maximum height of rays will be assigned to this parameter.

Returns:

_xValuesCountHistogram (array) – An array (Bins*1) that includes the x values for bins.
_yHistogram (array) – An array (Bins*1) that includes the y values for bins.

Examples

The function can be used to calculate the x values and y values for the histogram of an input ray.

>>> from raytracing import *
>>> nRays = 10000 # Increase for better resolution
>>> minHeight=0
>>> maxHeight=50
>>> nBin=20
>>> inputRays = RandomUniformRays(yMin=minHeight,yMax=maxHeight, maxCount=nRays)
>>> [xVal,yVal]=inputRays.rayCountHistogram(binCount=nBin)

And to plot the hitogram we can use xVal and yVal as the following:

>>> import matplotlib.pyplot as plt
>>> plt.figure()
>>> plt.bar(xVal,yVal,width=maxHeight/nBin)
>>> plt.title('Histogram of the inputRay')
>>> plt.ylabel('Counts')
>>> plt.xlabel('Height of Rays')
>>> plt.show()

`count`	Returns the number of rays in the list.
`rays`
`thetaValues`	Returns the angles of rays in the list.
`yValues`	Returns the heights of rays in the list.
